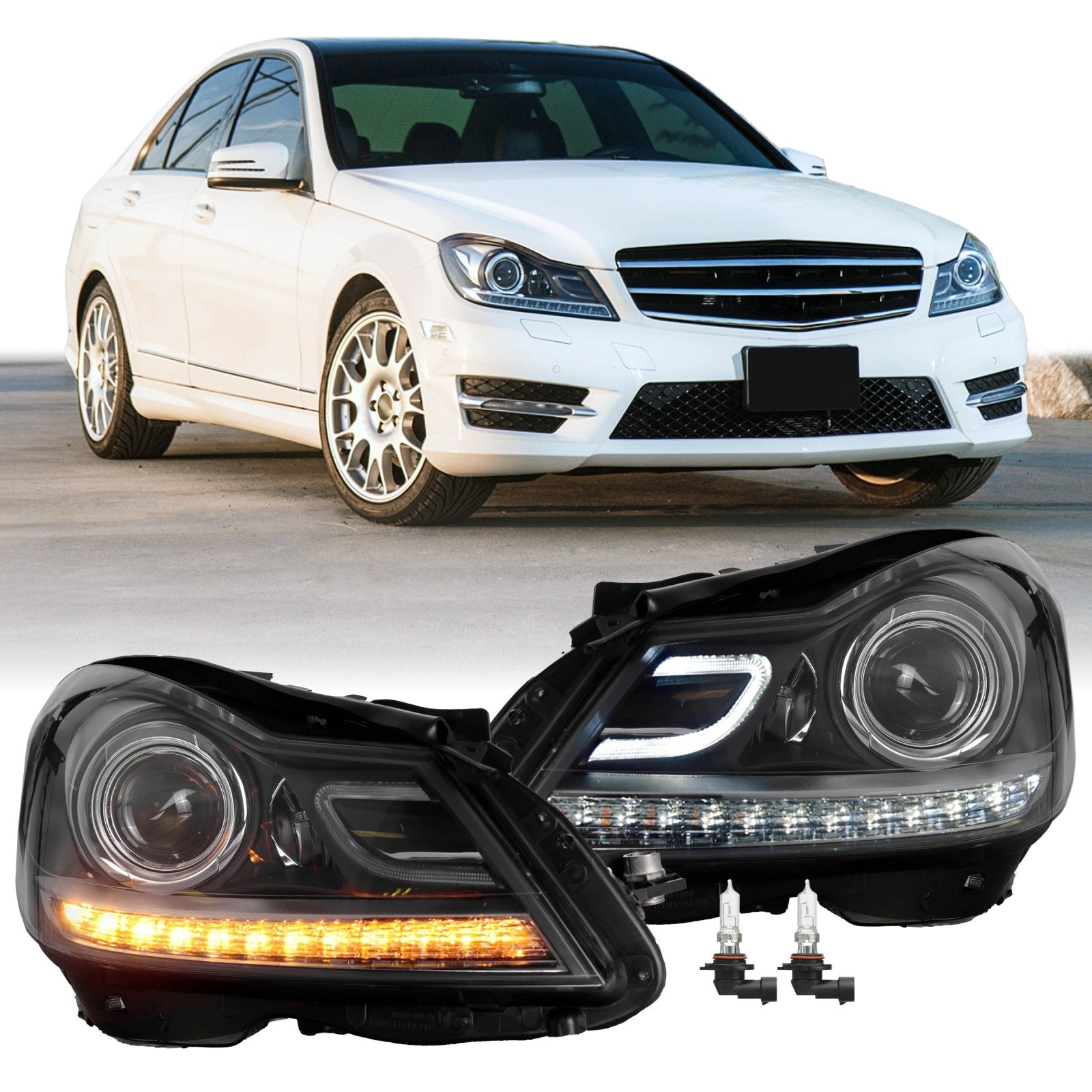

2012-2014 Mercedes Benz C Class W204 USR Edition Projector Headlight w/ White LED Strip DRL & Switchback Amber LED Turn Signal Halogen Model
Features

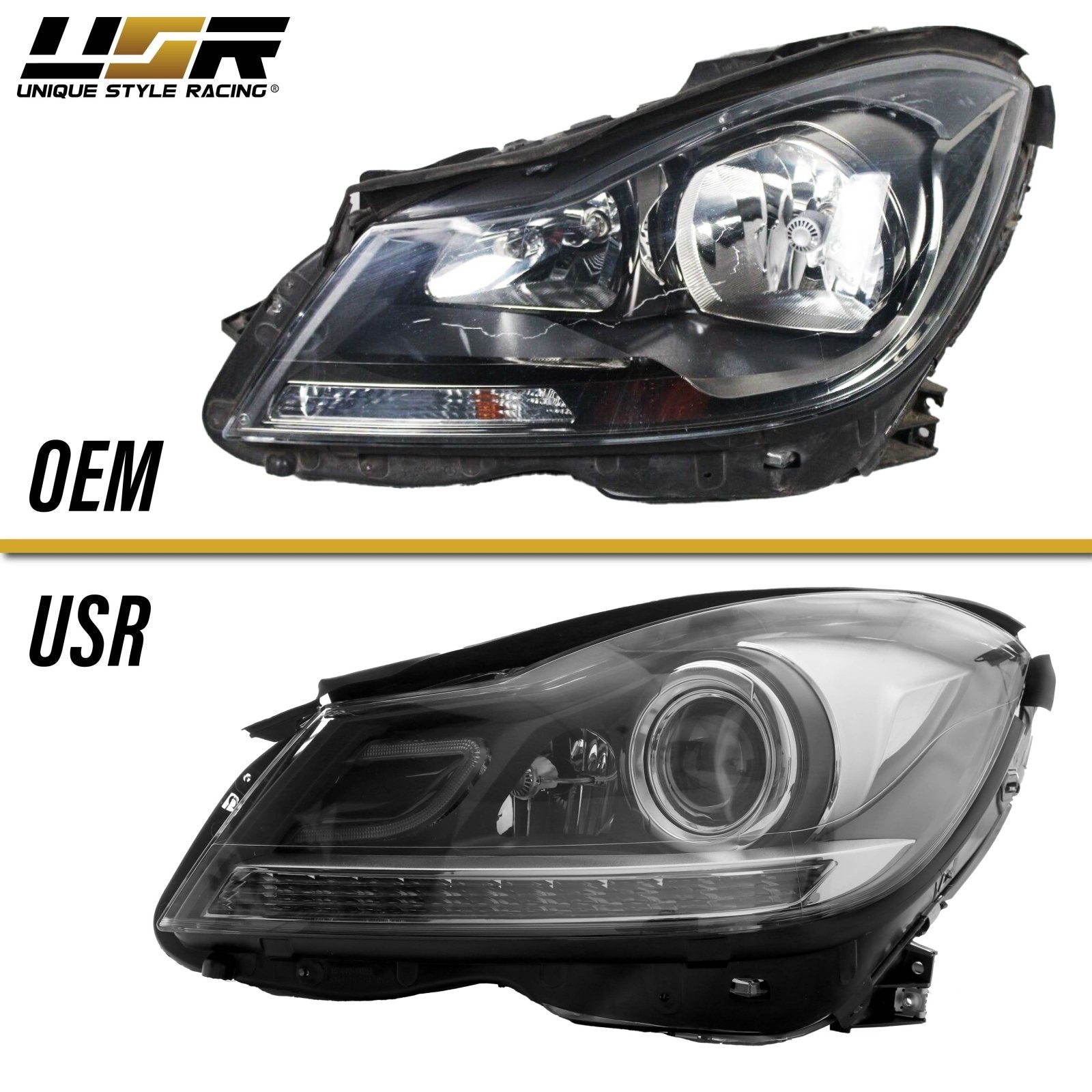

• USR Edition DEPO AMG C63 Style Black Housing White LED Strip DRL Projector Headlight w/ Amber LED Switchback Turn Signal.

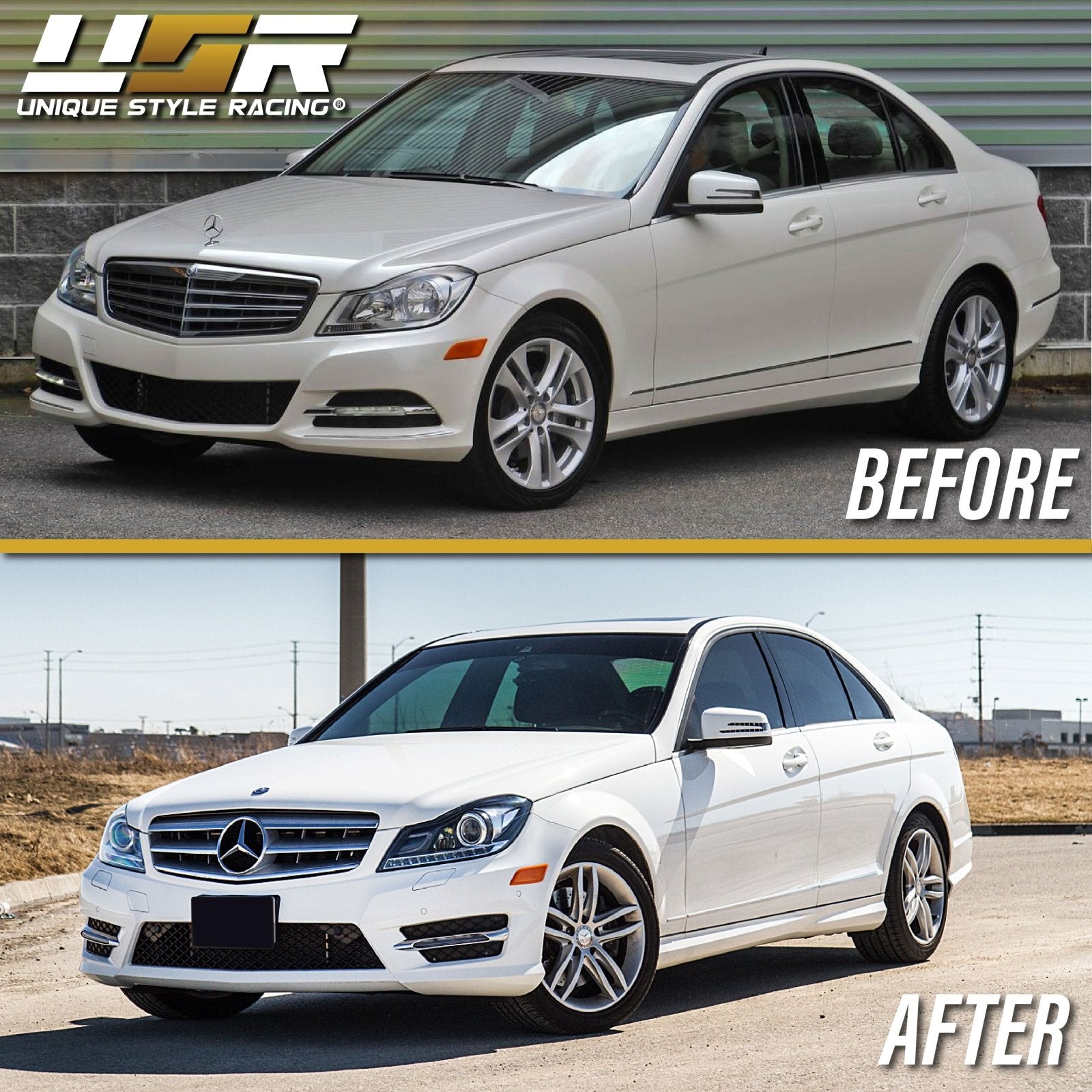

• Mercedes only offers the higher end model such as AMG C63 w/ Projector w/ LED Strip headlight - upgrade your halogen Non-Projector Headlight to AMG Look + adding the additional DRL LED strip feature that no one else is offering.

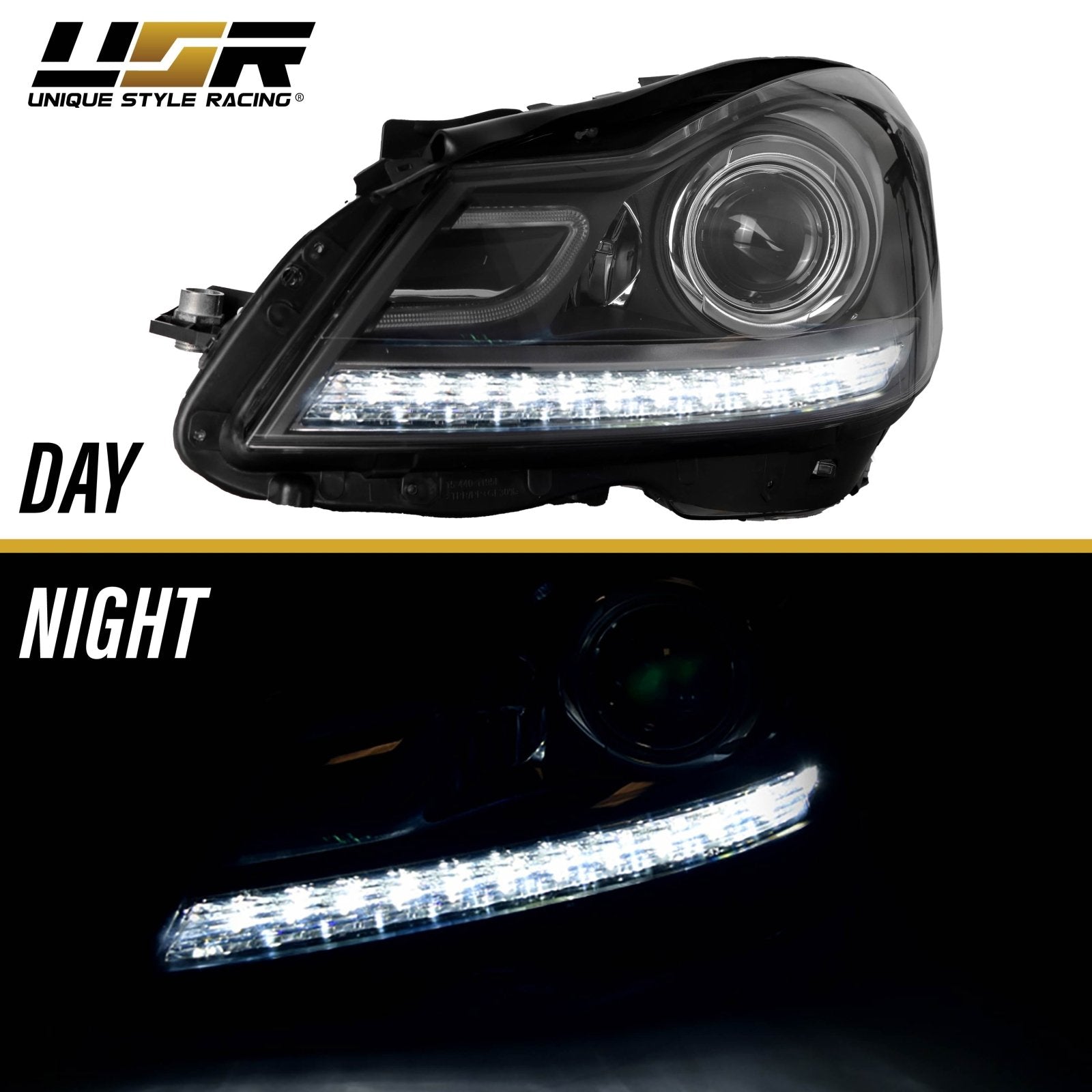

• True DRL (Daytime Running Light) LED that lights up by day automatically. White LED Strip is Daytime Visible bright, 10W OSRAM LED chips, Brighter than any on the market with supreme quality of OSRAM!

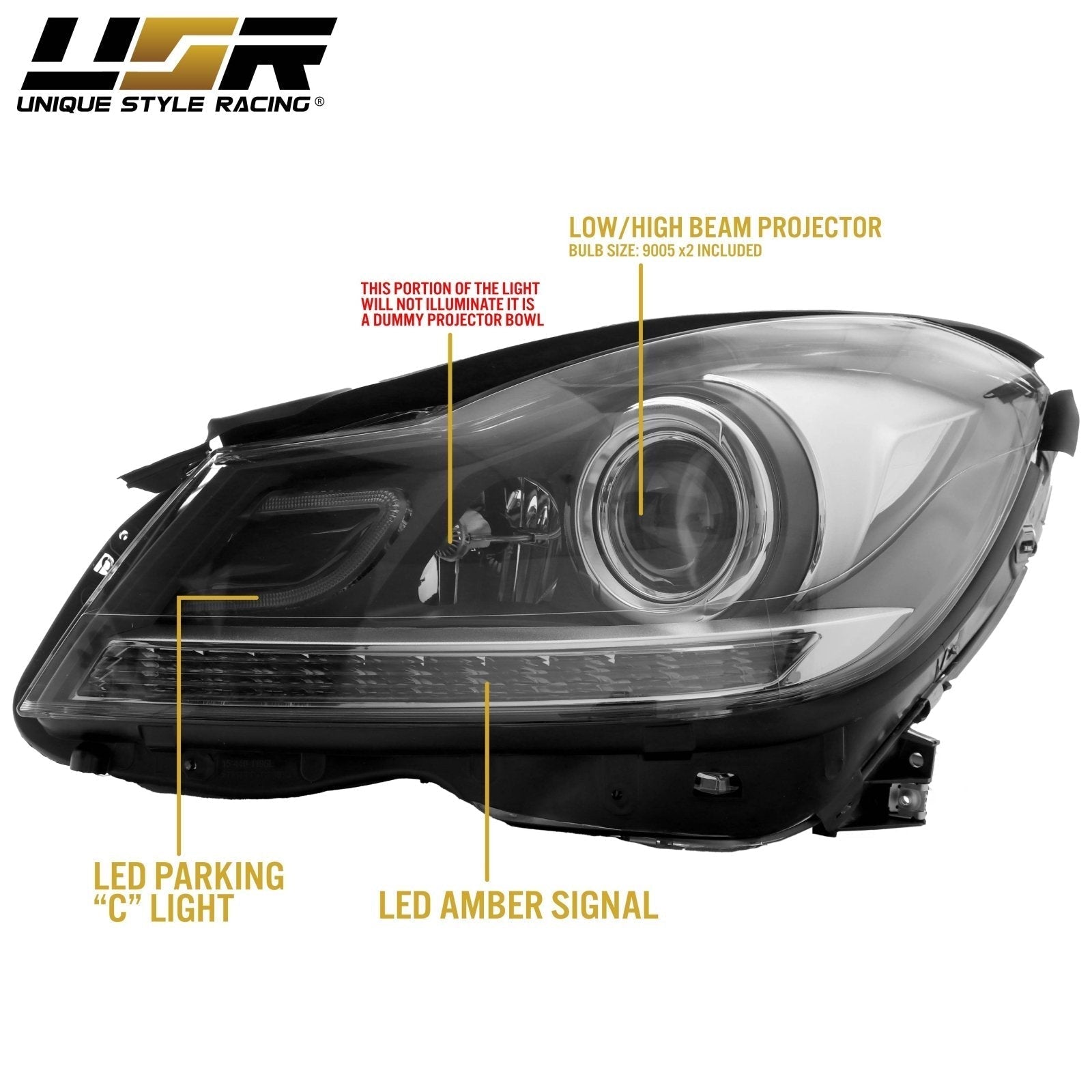

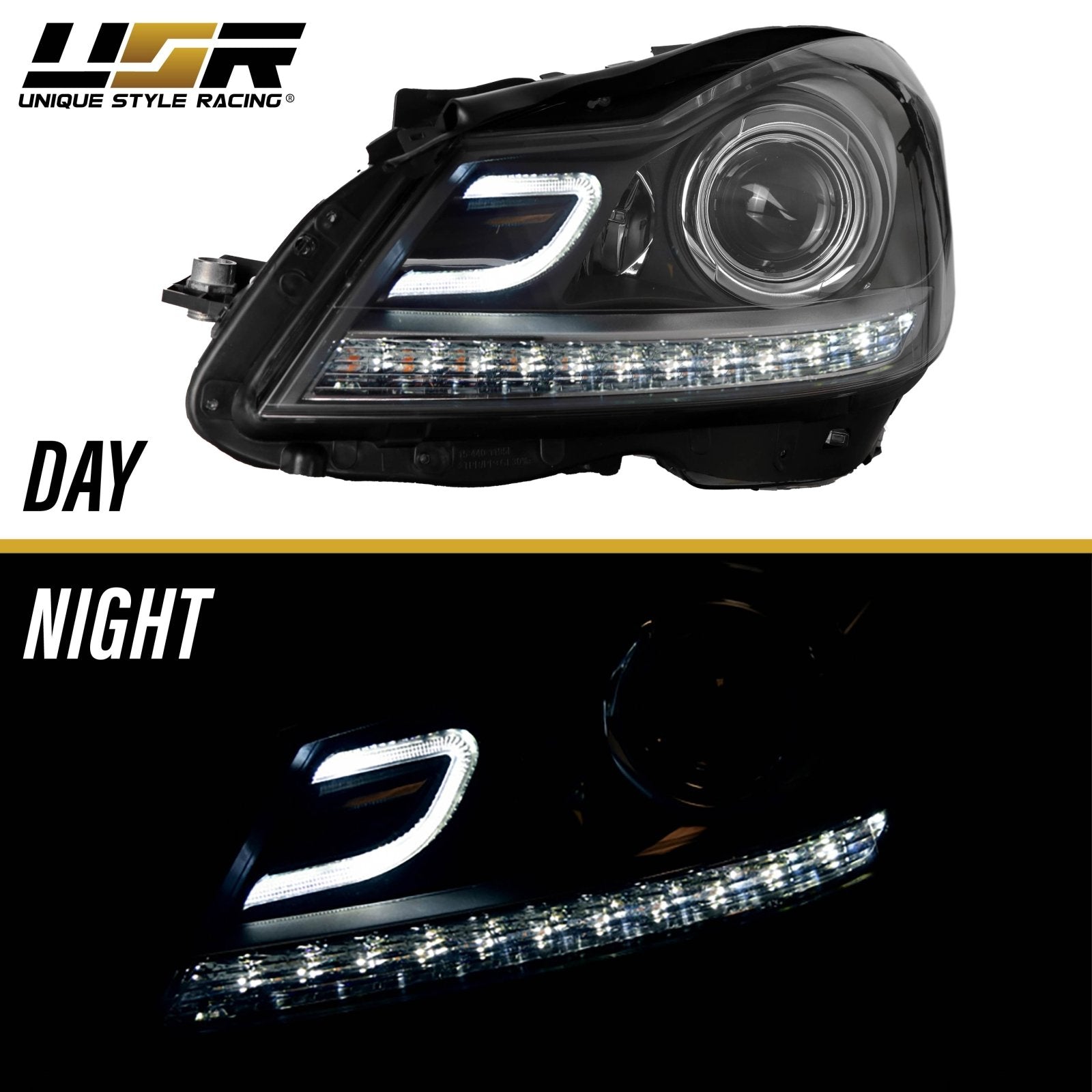

• White LED strip dims when you switch on the parking light while the "C" LED is lit at the same time for Parking Light feature.

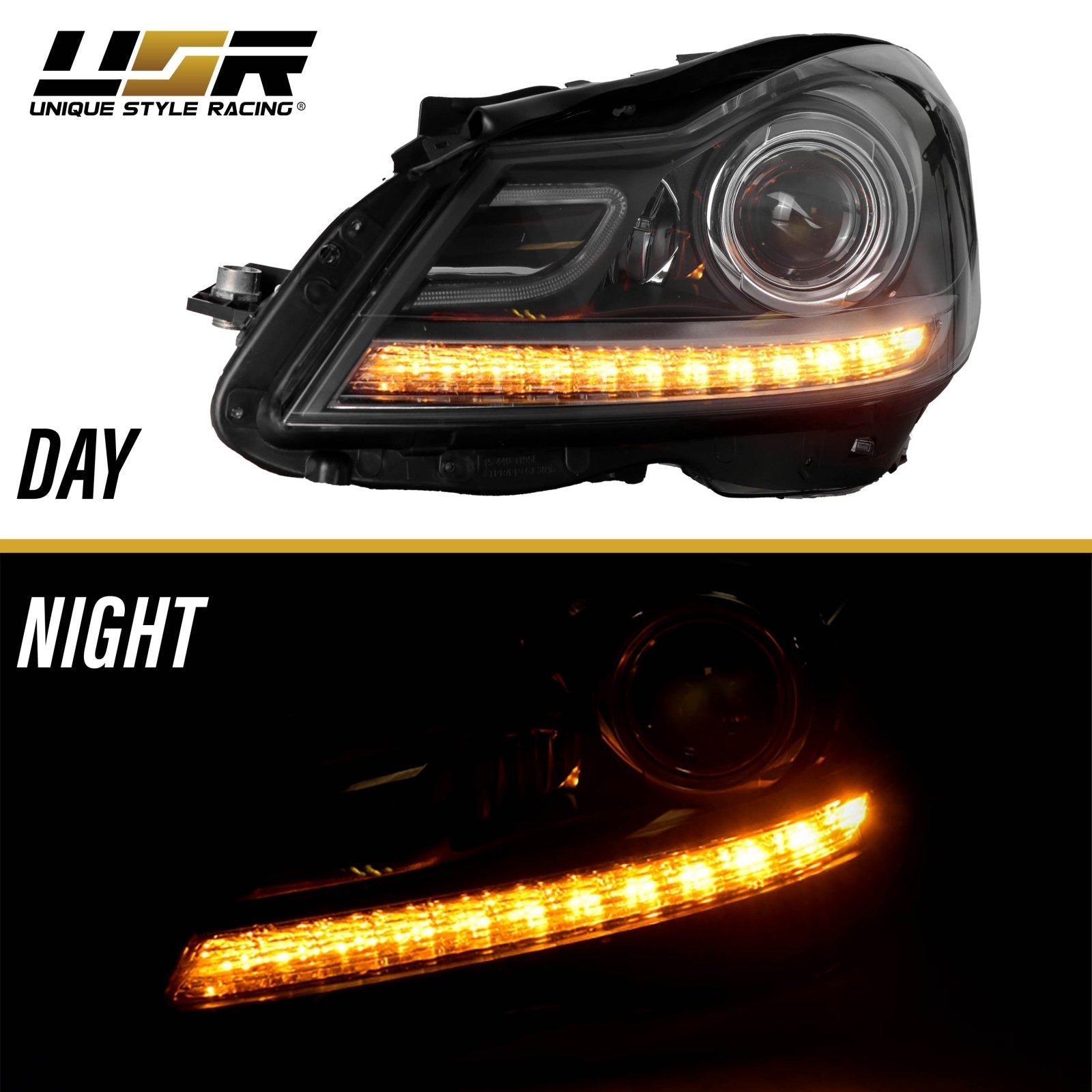

• White LED strip will switch to Amber & blink as Switchback feature when you engage the Turn Signal Light feature.
• A complete OE replacement unit, Plug & Play connection (*See special note), No Error after install.
• High/Low Projector designed to provide both functions all in one.
• SAE/DOT Approved.
• Bulb Specifications: Low/High Beam Halogen 9005 = HB3, Built-In White LED Strip for DRL, Built-In Amber LED Strip for Turn Signal.
• Optional upgrade: x2 Super White 5500K 9005 55W Halogen Bulbs to provide whiter output
|
Made to Replace OEM Part # |
|
| Left | 2048209959, 204 820 99 59, 204-820-99-59 2048205359, 204 820 53 59, 204-820-53-59 MB2502187, MB2502186 |
| Right |
2048200059, 204 820 00 59, 204-820-00-59 2408205459, 204 820 54 59, 204-820-54-59 MB2503187, MB2503186 |
Contents
• 2 Pieces Set (Left + Right) - Made by DEPO (ISO 2001 Certified Company - Excellent Quality!) - USR Edition

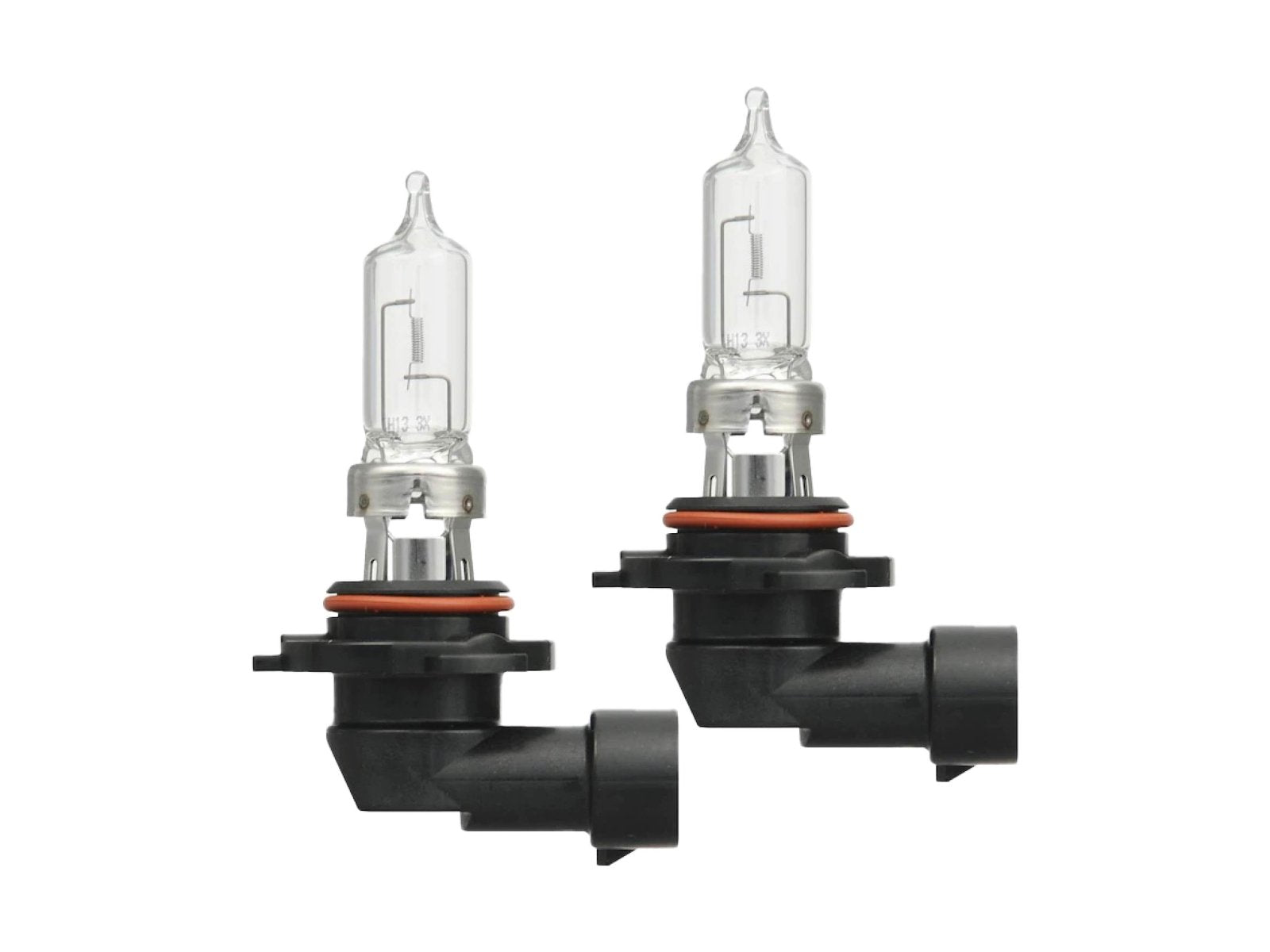

• 2 Pieces 9005 Halogen Bulbs (Left + Right)
Condition
• Brand New - 100% Never Been Used.
Notes

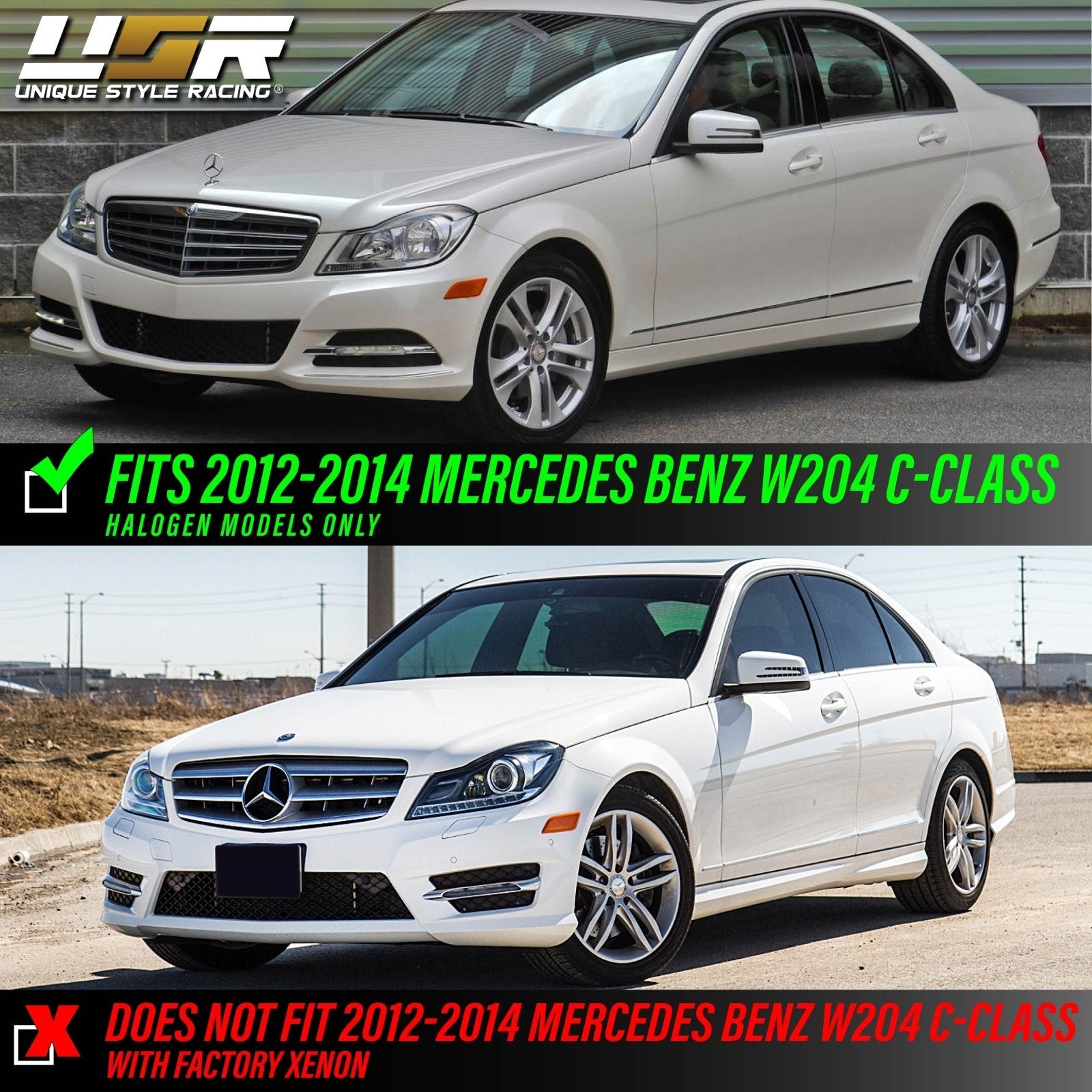

• Does NOT work on with factory xenon model.

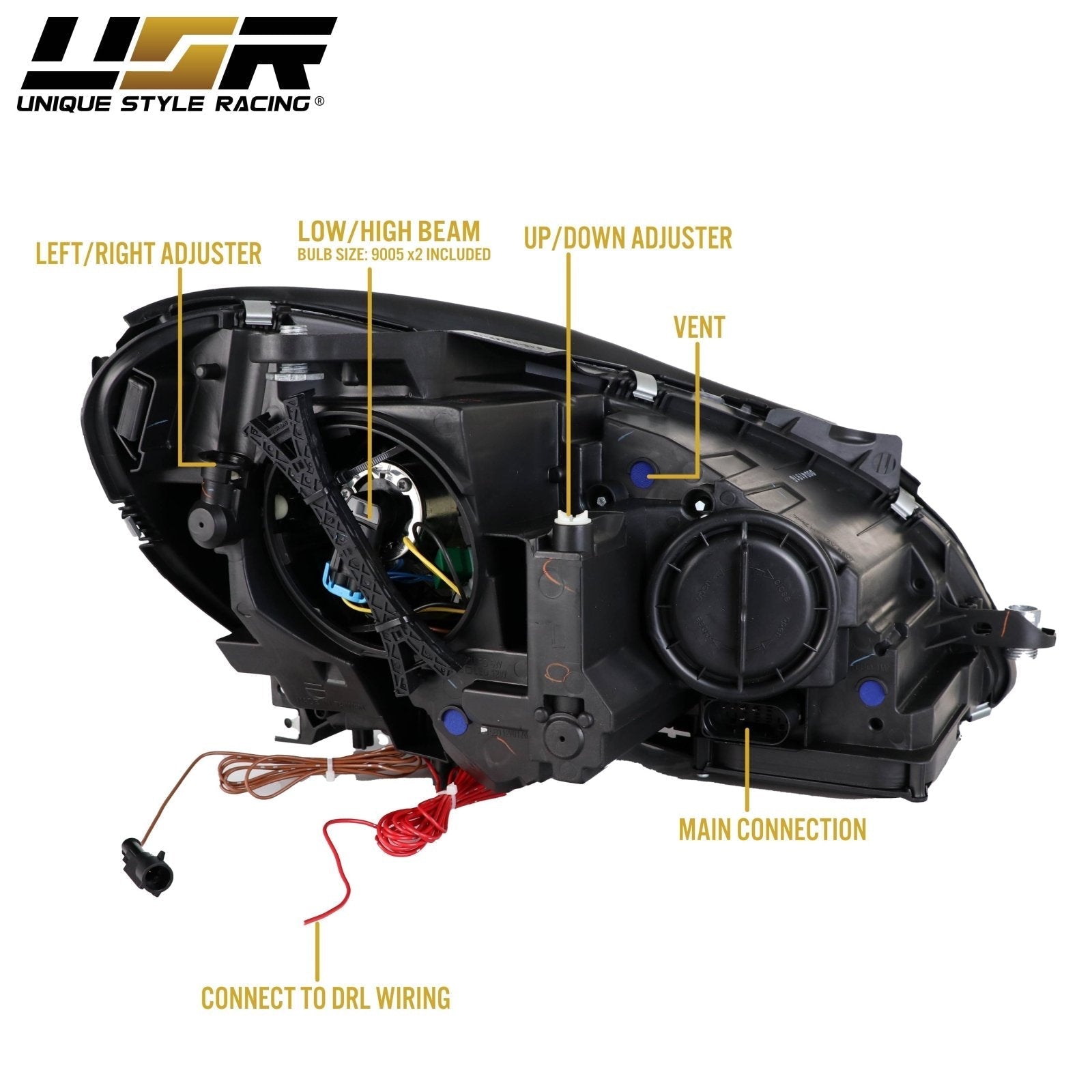

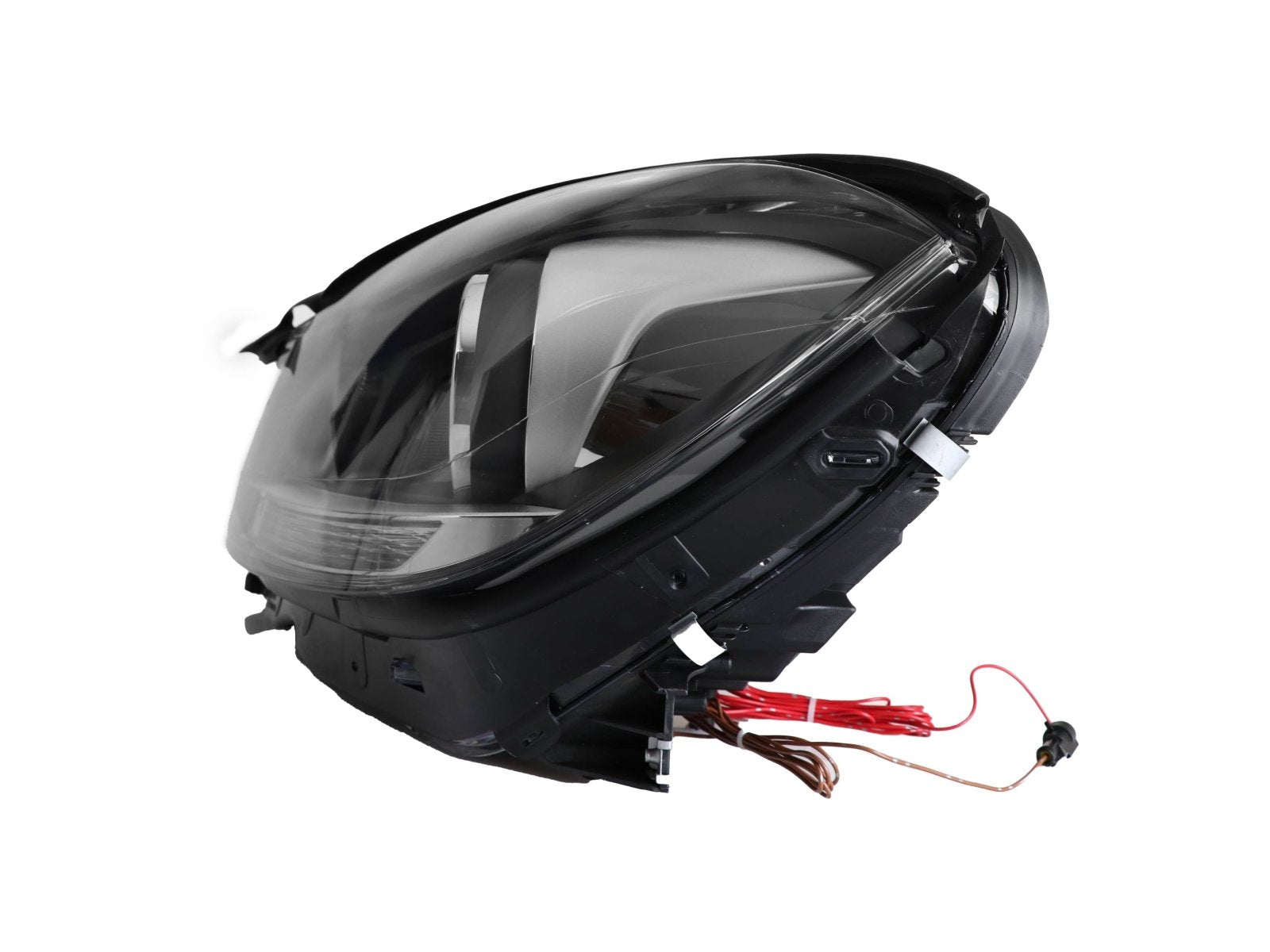

• Manufacturer includes simple wiring to connect the fuse box therefore able to activate the LED strip as Daytime Running Light.
• USR Edition compared to DEPO's original V1 version, it adds the White LED DRL strip feature and switchback to Amber LED turn signal feature.
Install Guide
Product FAQ
• Yes, this item is plug and play, and includes all bulbs/wiring necessary for full functionality upon installation.
• No, these headlights are equipped with Halogen bulbs for the Low Beam.
• NO, this item utilizes an LED strip for the parking and signal light functions, but the low and high beam lights are still halogen like your stock vehicle's headlights.
• It is up to your discretion whether if you want to add your own HID or LED bulbs to the headlights. Please note that installing aftermarket HID or LED bulbs may require you to "modify" the headlight's rear housing cap. Any modifications to the headlights will void the manufacturer's warranty.
• We include a fuse that you connect to a trigger wire coming to the headlight to replace your stock DRL fuse, which will enable the LED strip to act as your DRL. The following unofficial installation guide goes over the DRL Wiring.
• If you do not want to activate the feature, simply tuck the wires away and do not worry about wiring the feature up.
• No, it is only sold as a Set (Left + Right)
Have a question you need answered? Click here to contact us!
Halogen vs HID vs LED
Auto lighting
The current Auto lighting industry has three standard
bulb technologies integrated for headlight use.
The three headlight standards are
1) Halogen, 2) HID, or 3) LED based.
Advantages for LED
HOW TO TELL IF I HAVE FACTORY XENON
There are a few ways to check but the requirement
is that you must have stock lighting setup.
BI-XENON
“Bi-Xenon” means high and low beam are both genuine xenon HID, but the real (OEM Standard) bi-xenon is that the Low and High Beam uses the same xenon bulb and ballasts in the same projector which that projector has an electric controlled shutter built in (in front of light bulb but behind the glass projector lens).
AUTO-LEVELING
(ELECTRONIC SELF-LEVELING)
Auto-Leveling is the new feature that was introduced in the late 90. Auto-Leveling is a feature that incorporates a motor/servo built in a headlight which operates/actuates the headlight's inner adjustment mounts, which moves the Beam output angle up and down (either by car's ECU/OBC automatically or via a Self-Leveling Switch inside the car cabin). This headlight feature is to provide the best lighting angle for the headlight beam output, which helps maximizes the driver's visibility while also doubling to help not blind the oncoming traffic.
ADAPTIVE FRONT-LIGHT SYSTEM (AFS)
Introduced to the high end vehicles around year 2003, the AFS differs from Auto-Leveling that moves up and down, instead moves the headlight beam left / right to help driver see the upcoming curved road better. Rather than the mechanical linkages employed in earlier directional-headlamp systems, AFS relies on electronic sensors, transducers and actuators. Other AFS techniques include special auxiliary optical systems within a vehicle's headlamp housings. These auxiliary systems may be switched on and off as the vehicle and operating conditions call for light or darkness at the angles covered by the beam the auxiliary optics produce.
A typical system measures steering angle and vehicle speed to swivel the headlamps. The most advanced AFS systems use GPS signals to anticipate changes in road curvature, rather than simply reacting to them. To know whether you have AFS system or not, you can see if your headlight beam moving left / right when you change the direction of the steering wheel, but again that is not 100% scientific, so the best way is actually call to any dealer and give them your VIN number and they will be able to let you know if you have stock equipped AFS headlight or not.
DAY-TIME RUNNING LIGHTS (DRL)
DRL stands for Daytime Running Light which originally was developed and used in countries that are more prone to foggy conditions and it is a safety feature which has now become standardized by many car manufacturers. In some countries, it is by law required features (such as Canada). Please note that the DRL feature is not site specific on a vehicle. As long as the supposed “DRL” Light remains on during the day (with the Parking Brake disengaged) and turns off OR becomes dimmer (automatically) when the “Parking Light” Light is engaged, then the supposed light should be your DRL.
There are two main types of Day-time Running Lights Halogen DRL vs. LED DRL. There are other types of DRL, however to keep things simple, we will focus on the two main types. The picture example above shows the different projections between LED and Halogen.
DRL may use your low beam or high beam or others, but it is normally supplied only with 27.5W power versus the original 55W halogen bulbs used in the halogen low beam or halogen high beam. So it might create an issue if you upgrade a genuine xenon HID system to the headlight if the DRL function is using the new xenon HID system. This is because standard xenon HID needs 35W to power it, while DRL is only supplied with 27.5W, it means the system is underpowered. Flickering, error message, not able to fire it up would be the common issue if you have DRL powering the HID system. To solve it, the installer can either disable the DRL feature altogether or do minor re-wiring so the DRL is powering something else other than the new HID light.
KELVIN TEMPERATURE
Kelvin temperature is commonly mistaken for the heat or brightness output of the HID Bulb. The Kelvin temperature only deals with the "color" output the Bulb emits as each colors covers a certain Kelvin range. The "K" for instance in "8000K" represents the certain bulb color temperature output, and it's the abbreviation for the word Kelvin. Below is a chart showing you the range of the Kelvin temperatures. Lower Kelvin temperature will emit a more red output. The normal halogen lamp color temperature is rated at 3200K.
VEHICLE SPORTS PACKAGE OR BUMPER
Car manufactures have recently implemented Sports packages for certain of their chassis by creating a sub-segment that widens their market and to fulfill market demands. Sports packages are commonly associated with performance cars such as Audi, BMW, MBZ, and Lexus. Each car manufacturer have their own Sports package brand.
PRE-FACELIFT VS FACELIFT
Most car's production period (chassis life) is around 4 to 6 years. In between each chassis production period the car manufacturer usually will make minor improvements (design-wise and/or engine-wise) after 2 to3 years after its initial chassis introduction. This is to update the car's look and to stimulate market. The first half of the production period (before the manufacturer updates the chassis) is commonly referred as Pre-Facelift, whereas post half of the chassis production period is referred as Facelift.
Life Cycle Impulse (LCI) - BMW term for facelift or update to existing series. Life cycle inventory, part of a Life cycle assessment to stimulate sales. LCI is typically known as "Facelift" for BMW vehicles.
ABBREVIATION GLOSSARY
AFS- Adaptive Front-light System
DRL- Day-time Running Lights
ECU- Engine control unit
GPS- Global Positioning System
HID- High Intensity Discharge
K- Kelvin
OBC- On Board Computer
OBD- On-Board Diagnostics
OEM- Original Equipment Manufacturer
PnP- Plug and Play
RMA- Return Merchant Authorization
VIN- Vehicle Identification Number
